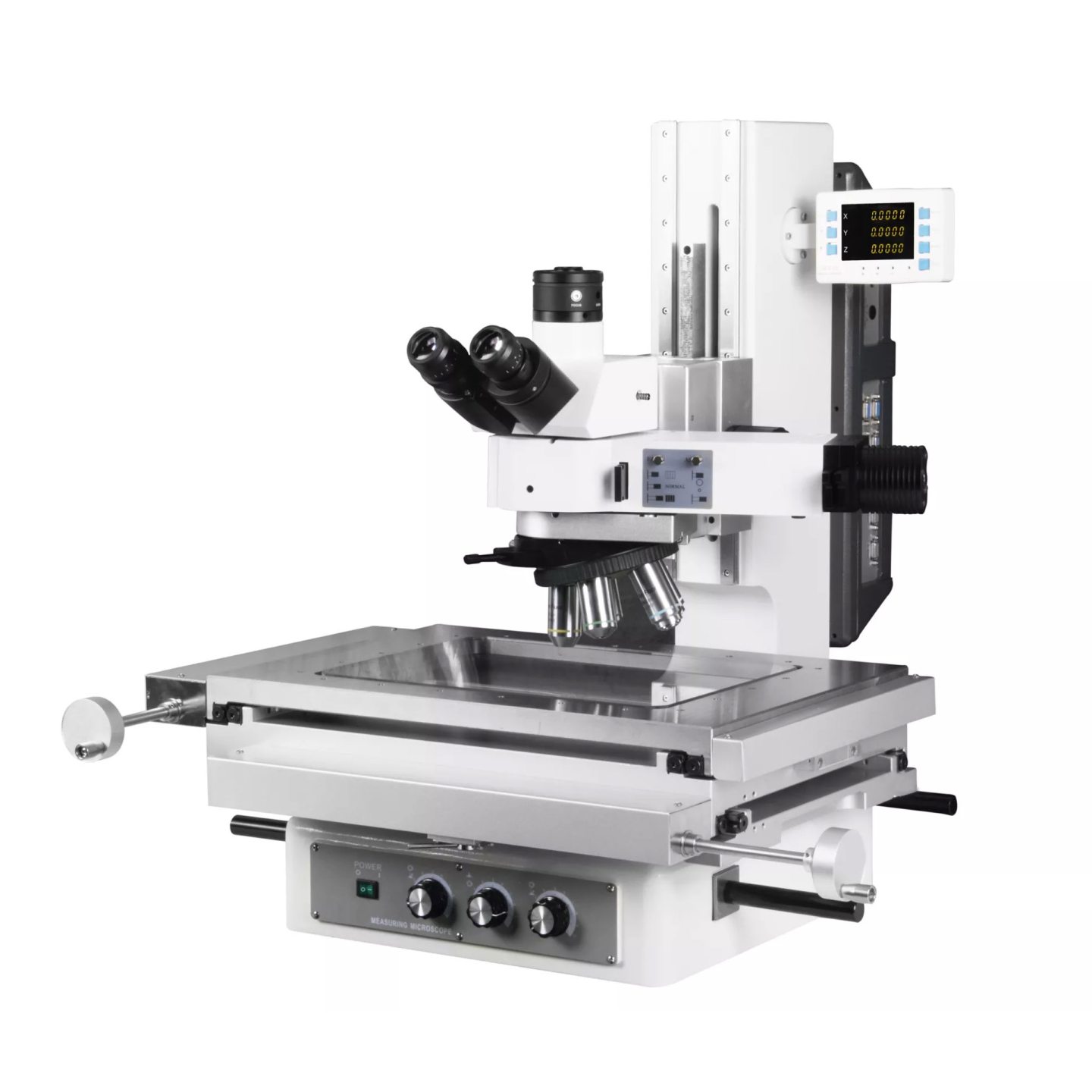

Description
Models & Specifications
| Model | Without Z-axis measurement | EM6U-1010 | EM6U-1510 | EM12U-2015 | EM12U-3020 |
| With Z-axis measurement | EM6UF-1010 | EM6UF-1510 | EM12UF-2015 | EM12UF-3020 | |
| Viewing tube |
Monocular tube/binocular tube, all models come with standard TV camera port | ||||
| Image |
Erect image/reversed image | ||||
| Observation Method | Bright field, dark field, polarization, differential interference observation | ||||
| Eyepiece |
10x/22mm eyepiece with adjustable diopter | ||||
| Objective | Brightfield Objectives | Plan FLUOR EPI Objectives / Plan FLUOR EPI SL Objectives | |||
| Darkfield Objectives | Plan FLUOR EPI-BD Objectives | ||||
| Focusing system | Maximum height of measured object | 150mm | 200mm | ||
| Focusing method | Coaxial coarse and fine adjustment, left and right handles (coarse adjustment: 40mm/circle, fine adjustment: 0.02mm/circle) | ||||
| Illumination device | Transmitted illumination | Telecentric lighting, step-less brightness adjustable, 5W LED light source | |||
| Reflected illumination | Kohler illumination, FA-assisted focus, adjustable field diaphragm, adjustable aperture diaphragm, step-less brightness adjustment, LED light source/halogen light source optional | ||||
| Oblique illumination | LED ring light source/optical fiber cold light source | ||||
| Stage | Measurement range | 100*100ｍｍ | 150*100ｍｍ | 200*150ｍｍ | 300*200ｍｍ |
| Metal table dimensions | 285*250mm | 300*250mm | 400*280mm | 500*350mm | |
| Glass size | 170*145mm | 204*145mm | 245*192mm | 350*250mm | |
| Quick release | The standard configuration | ||||
| Digital counter | Least count | Available in 1/0.5/0.1μm | |||
| Function | Zero adjustment, centering, direction conversion, metric conversion, RS232 output | ||||
| Measurement accuracy | (3+0.02L) μm L is the measurement length | ||||
| Power consumption | 45W、85～240VAC 50/60HZ | ||||
| Main body | External dimension (W*D*H) mm | 445x670x710 | 480x670x710 | 607x793x720 | 720x810x720 |
| Weight | 50KG | 55KG | 80KG | 110KG | |
* 1). “F” in model name means: The equipped illuminator is type FA, which has an auxiliary focusing function and can perform more accurate Z-direction measurement. The optical head is built with a metallographic microscope module, which can not only measure the size, but also perform metallographic observation in various modes such as bright field, dark field, simple polarized light, and differential interference.
* 2). “U” in model name means: The optical head is built with metallographic microscope modules, which can not only measure the size, but also carry out metallographic observation in bright field, dark field, simple polarized light, differential interference and other modes.
